SYSTEM SYSTEM INFORMATION

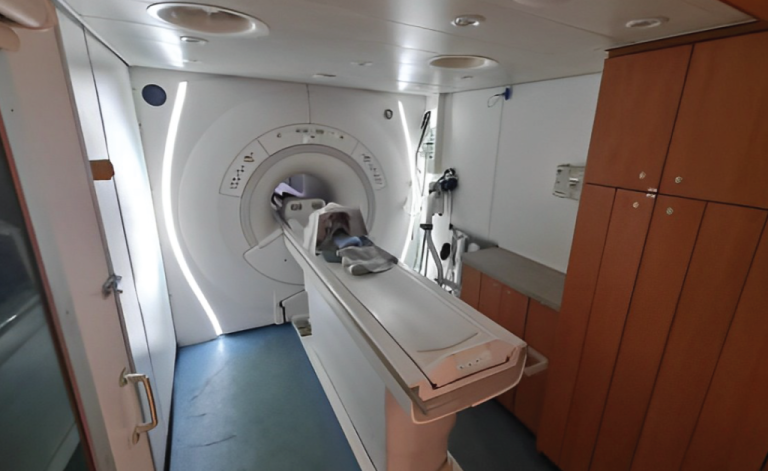

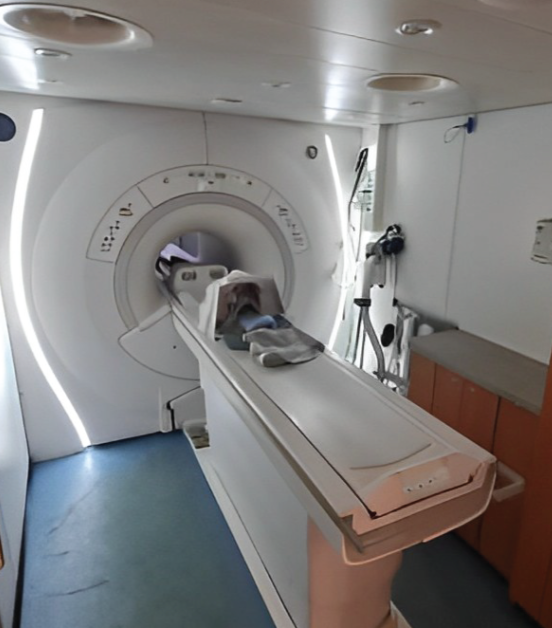

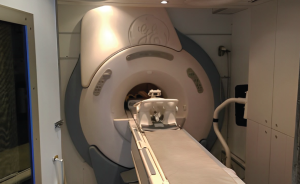

The GE Optima MR360 Advance 1.5T MRI system. This powerful machine, manufactured in 2013, boasts 16 channels to deliver high-quality images.
Here’s what makes it a great choice:
- Excellent image quality: Produce detailed scans for confident diagnoses.
- Patient comfort: Many MRI machines can feel claustrophobic. The design of the Optima MR360 Advance 1.5T helps alleviate patient anxiety.
- Advanced functionalities: This system is equipped with advanced features to meet your specific needs.
Looking for detailed specifications and product information on Lifcon MRI machines? Look no further! Our downloadable PDFs provide in-depth insights into our range of MRI systems, including technical specifications, features, and performance data.
GRADIENT INFORMATION
- Max. amplitude (each axis): 33 mT/m
- Max. effective amplitude (Vector): 57 mT/m
- Max. slew rate (each axis): 120 mT/m
- Magnet bore diameter: 60 cm
PATIENT TABLE INFOEMATION
The MRI machine has a maximum table load capacity of 159 kilograms and a horizontal travel distance of 244 centimeters. The table height is adjustable, ranging from a minimum of 49 centimeters to a maximum of 96.5 centimeters.
RESOLUTION PARAMETERS
- Max. FOV: 50 cm.
- Min. FOV: 1 cm.
- Min. slice thickness (2D): 0,5 mm
- Max. slice thickness (2D): 100 mm
MAGNET DETAILS
The MRI system features a 1.5 Tesla magnetic field generated by a GEMS LCC 1.5T (CXK4) magnet, operating at a frequency of 63.86 MHz. The magnet boasts a 60 cm bore diameter, providing ample space for patients.

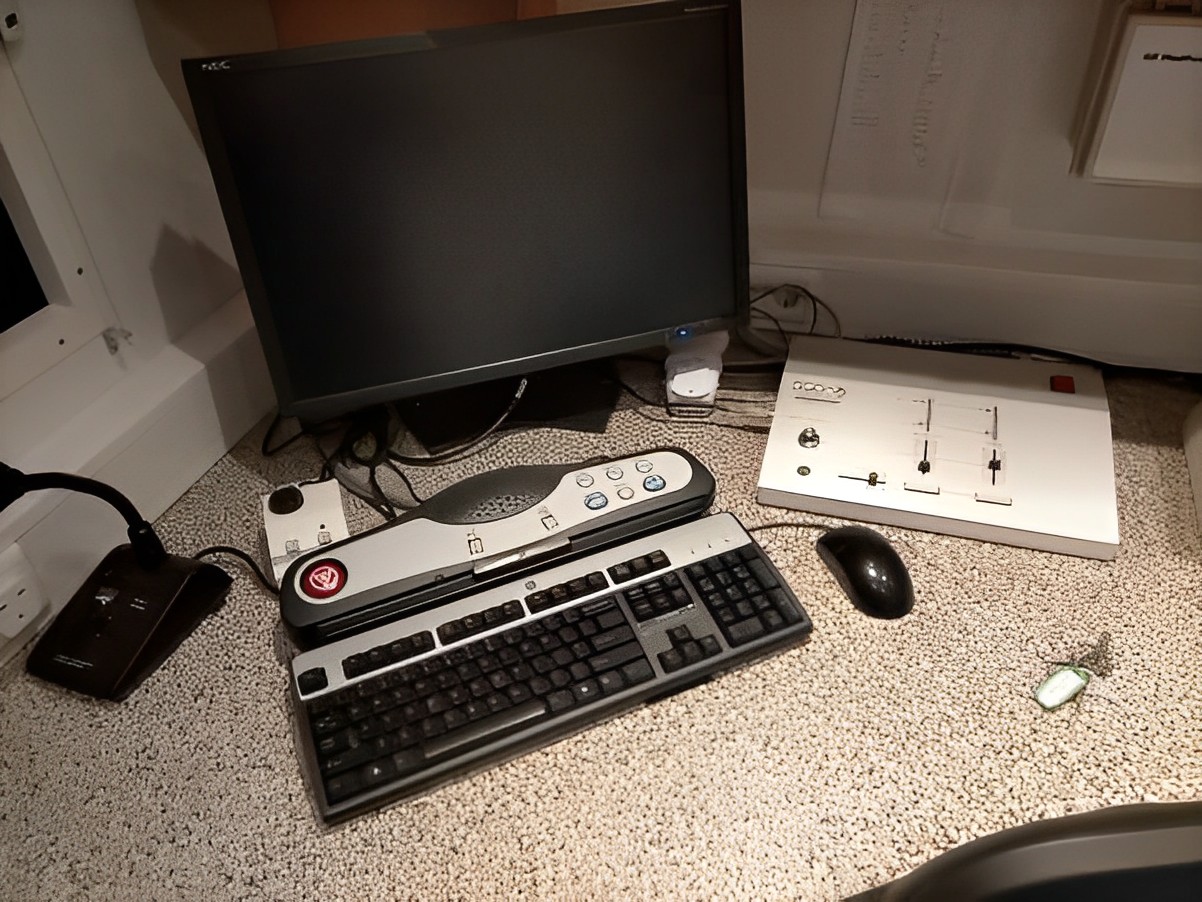

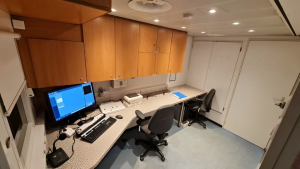

CONSOLE AND WORKSTATIONS
CONSOLE COMPUTER OR STORAGE CAPACITY
Unleash exceptional processing power for your business with the Lifcon Console Computer. This powerhouse features a blazing-fast Intel Quad-Core 2.5 GHz processor and 8GB of memory, ideal for running demanding applications smoothly.
Ample storage to house your data:
- 320GB for system software, databases, and image storage: Ensures you have the space for critical applications and files.
SOFTWARE VERSION & OPTIONS
- 320GB for system software, databases, and image storage
- Capable of storing 400,000 uncompressed 256x256 images:
- Core Imaging Techniques:
- Advanced Applications:
- Functional Imaging:
- Anatomic Imaging:
- Quantitative Techniques
- Advanced Speed and Resolution:
POST-TREATMENT WORKSTATION & STORAGE CAPACITY
- Power Through Post-Processing with the Lifcon Advantage Workstation
- Unleash exceptional performance for demanding post-processing tasks with the Lifcon Advantage Workstation. This powerhouse features:
- High-performance processor: The Intel® Xeon® 5482 Quad Core 3.2 GHz processor tackles complex calculations with ease.
- Ample memory: 26GB of DDR memory ensures smooth multitasking and efficient data handling.
WORKSTATION SOFTWARE & PACKEGES
Together, Lifcon workstations and injection systems provide a comprehensive solution to elevate your imaging workflow.
Contact us today to discuss your specific needs and explore our complete range of imaging solutions!
COILS
Lifcon MRI Coils: Delivering Exceptional Image Quality for Diverse Examinations
Equip your MRI scanner with a range of high-performance coils from Lifcon to optimize image acquisition for various anatomical regions:
Discover the intricacies of Lifcon MRI machines with our comprehensive product PDFs. Delve into detailed specifications, key features, and performance metrics to make informed decisions.
